Character LCD Modules: 16x2, 20x4 and Custom Formats Explained

What a Character LCD Module Is, and Why HD44780 Compatibility Still Matters in 2026

Character LCD modules remain one of the most specified display technologies in industrial, medical, and instrumentation design. If you are sourcing a character LCD module for a new build or managing a long-life program, the format, controller, and fluid choices you lock in today will shape your BOM cost and supply risk for years. The reason is simple: the HD44780 controller architecture, introduced in the 1980s, is still the de facto standard that most character displays emulate.

That compatibility is not nostalgia. It is a procurement advantage. A HD44780 LCD-compatible module drops into existing firmware with a well-understood command set and timing. Engineers who have maintained a product line for a decade know exactly how the controller behaves. When a redesign forces a panel change, an HD44780-compatible replacement often means zero firmware rework — a meaningful saving when validation cycles are expensive.

In 2026, character modules persist because they solve a narrow problem extremely well: displaying a small, fixed set of alphanumeric data reliably, cheaply, and across wide temperatures. They are not competing with TFTs for graphics. They are competing with nothing at all in many control-panel niches, which is why the format ecosystem has stayed remarkably stable.

Formats That Actually Exist: 8x1, 16x1, 16x2, 20x2, 20x4, 40x2, 40x4 — and What Each Is For

The character LCD market has settled around a handful of standard formats. Knowing which ones are truly common matters, because off-the-shelf availability drives both cost and lead time.

• 8x1 and 16x1: Single-line modules for very compact readouts. Note that many 16x1 modules use a split internal arrangement, so verify the actual character mapping before committing firmware.

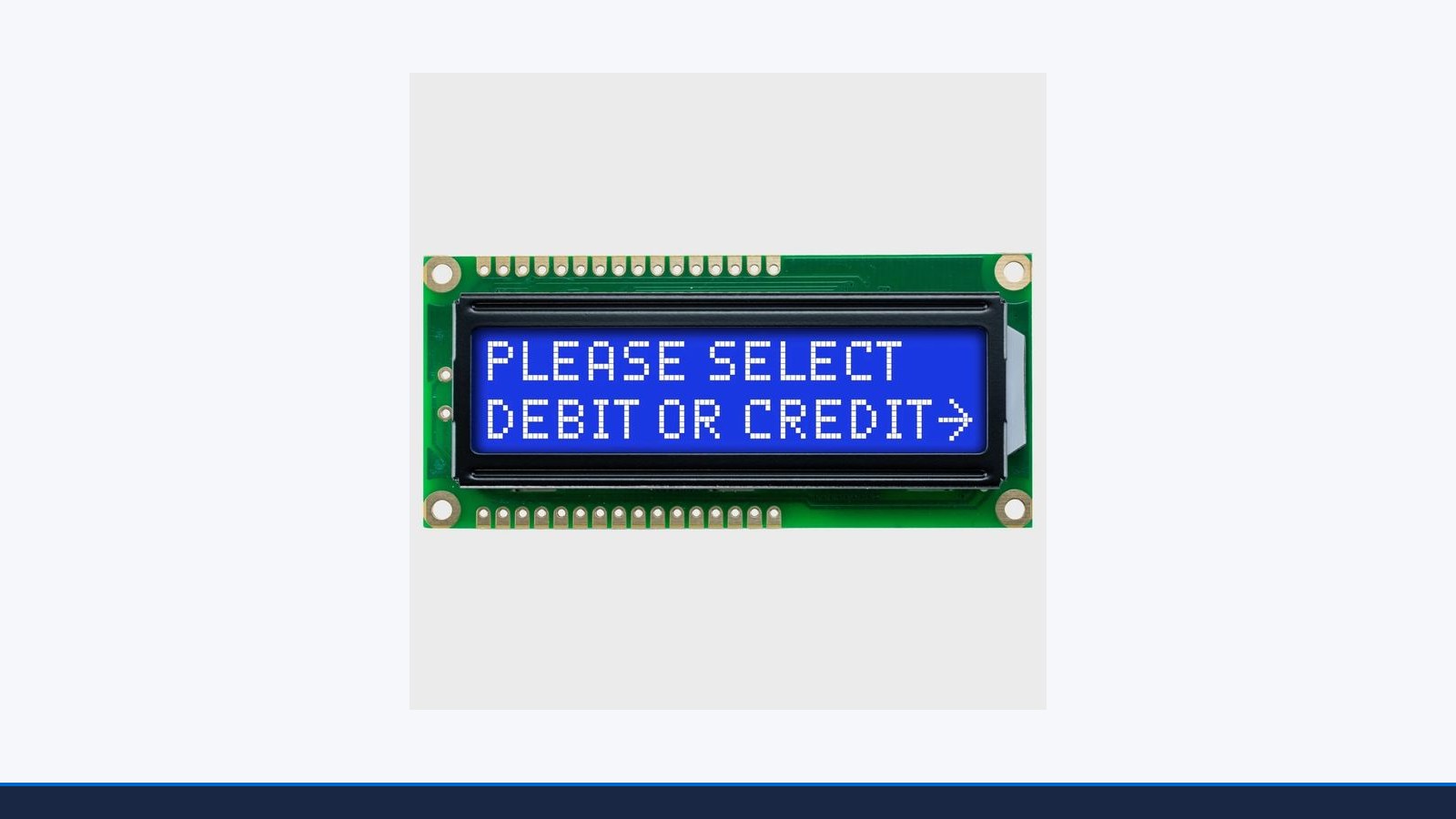

• 16x2 LCD module: The workhorse. Two lines of 16 characters covers most status, setpoint, and menu displays. Broadest second-source availability of any format.
• 20x2: A less common middle ground; useful when you need line length but not a third or fourth row.
• 20x4 LCD: Four lines of 20 characters for richer menus, multi-parameter readouts, and diagnostic screens. Popular in industrial controllers and medical front panels.
• 40x2 and 40x4: Wide formats for rack equipment, telecom, and legacy industrial systems. The 40x4 typically uses a dual-controller arrangement, which affects both firmware and cost.

The practical takeaway for buyers: 16x2 and 20x4 dominate volume, so tooling and panel supply are mature. Exotic formats are available but often carry minimum order quantities and longer lead times because they are built to order rather than stocked.

Format	Characters per line	Dot matrix per character	Typical use	Supply note
8x1	8	5x8	Compact indicators	Built to order
16x1	16	5x8	Narrow panels	Limited stock
16x2	16	5x8 / 5x11	General control panels	Highest volume, best availability
20x2	20	5x8	Instrument readouts	Stock common
20x4	20	5x8 / 5x11	Machine status, lab equipment	High volume
40x2	40	5x8	Dense text displays	Built to order
40x4	40	5x8	Multi-line status panels	Built to order

The table above is the practical shortlist: if your design can accept a 16x2 or 20x4 footprint, you ride mature tooling and short lead times; if it cannot, plan for tooling and minimum order quantities.

STN vs FSTN vs VA: Choosing Readability for the Real Lighting Conditions

The fluid and polarizer stack determine how a character LCD looks in the field, and this is where many projects get into trouble. A module that reads beautifully on a lab bench can wash out under direct sunlight or look murky at night.

STN (Super Twisted Nematic)

STN offers good contrast at a favorable cost and is the default for many general-purpose modules. Viewing angle is moderate, and contrast can shift noticeably off-axis. For indoor equipment with a fixed operator position, STN is often entirely adequate.

FSTN (Film-compensated STN)

FSTN adds a compensation film that improves contrast and widens the viewing angle compared with standard STN. It costs more but delivers noticeably crisper text, particularly for multi-line displays like a 20x4 LCD where the operator may view from an angle. For medical and industrial front panels, FSTN is frequently the sensible upgrade.

VA (Vertically Aligned)

VA-based character displays typically deliver high contrast and a darker background, which many designers prefer aesthetically. The trade-off is usually cost and, in some configurations, a narrower optimal viewing cone. VA is worth considering when appearance and contrast are priorities and the budget allows.

A practical rule: match the fluid to the worst-case lighting and viewing geometry in the field, not the best case on your desk. If you cannot test in situ, ask your supplier for samples across the candidate fluid options before freezing the design.

Interfaces Compared: 4/8-bit Parallel, SPI, I2C — Pin Count, MCU Load, Cable Length

Interface choice shapes your PCB, your firmware, and your cable assembly. Each option trades pin count against bus speed and robustness.

• 8-bit parallel: Fastest update, but consumes eight data lines plus control pins. Best for legacy designs or when refresh speed matters.
• 4-bit parallel: Halves the data lines to four, at the cost of two transfer cycles per byte. This is the most common compromise in embedded designs and keeps firmware close to the classic HD44780 model.
• SPI: Fewer pins and easy daisy-chaining, but requires a bridge IC or firmware bit-banging, and long cables demand attention to signal integrity.
• I2C: Minimal pin count (two lines), ideal when MCU pins are scarce. The trade-off is slower throughput and greater sensitivity to bus capacitance, which limits practical cable length.

Cable length deserves explicit attention. Parallel interfaces tolerate longer runs but radiate more; I2C is convenient but degrades with capacitance. For panel-mounted modules connected by ribbon or harness, specify the interface alongside the cable and confirm timing margins with your supplier. When pin count is the binding constraint, a COG LCD module keeps the driver on the glass and removes the bezel-mounted controller entirely.

Backlight Options: White, Yellow-Green, Blue, Amber, Red — Current Draw and Lifetime

Backlighting is where power budgets and field reliability meet. The common options each carry distinct characteristics:

• Yellow-green: Traditionally the most power-efficient LED backlight, with good visibility in ambient light. A long-standing default for low-power instruments.
• White: Neutral appearance and good contrast with dark text; typically draws more current than yellow-green.
• Blue, amber, red: Chosen for branding, night-vision compatibility, or to signal alarm states. Red and amber are common in applications where dark adaptation matters.

Two procurement points matter here. First, backlight current draw directly affects your power supply sizing and thermal budget — confirm typical and maximum figures rather than assuming. Second, LED backlight lifetime is generally long but degrades with drive current and temperature; overdriving for brightness shortens service life. Ask for the drive conditions behind any lifetime claim.

Temperature Ranges: 0 to +50 Standard, -20 to +70 Industrial, -40 to +85 Extended

Temperature is one of the most consequential specifications and one of the most frequently glossed over. Character LCD fluid response slows in the cold and contrast shifts in heat, so the operating range you specify must reflect the real environment.

• 0 to +50 °C: Standard commercial range. Fine for climate-controlled indoor equipment.
• -20 to +70 °C: Industrial range, suitable for many factory floors, outdoor enclosures with heating, and unheated buildings.
• -40 to +85 °C: Extended range for automotive-adjacent, cold-chain, and harsh-environment applications. These modules typically require specific fluid and heater provisions, and cost more.

If your product ships to multiple climates or sits in an unconditioned cabinet, specify the industrial or extended range from the start. Retrofitting a temperature grade after qualification is far more expensive than designing for it.

Specifying a Custom Module: Character Set, Glass Tooling, FPC and Connector Choices

Standard formats cover most needs, but custom character LCD modules are common when a product needs a specific glyph set, outline dimensions, or connector position. Custom work typically touches several areas:

1. Character set and ROM: Custom glyphs (symbols, non-Latin scripts, unit marks) may require custom ROM or a controller variant. Confirm the character generator approach early.
2. Glass tooling: A custom glass outline or character layout requires tooling investment and lead time. This is usually the longest pole in the schedule.
3. FPC and connector: Flexible printed circuit design, pinout, and connector type affect assembly and serviceability. Lock these down with mechanical drawings.
4. Mechanical envelope: Bezel, viewing window, and mounting holes must be agreed in drawing form before tooling release.

Experienced buyers treat custom tooling as a program milestone, not a purchase order line. Budget the review cycles. For projects that need a non-standard outline, character set or connector, the custom display design process runs from drawing review to glass tooling.

Three Specification Mistakes That Cause Field Returns

Most field failures in character displays trace back to specification gaps rather than manufacturing defects. Three recur:

• Specifying viewing angle by habit rather than by geometry. A 6 o’clock module mounted at eye level can read poorly. Match the viewing direction to the actual operator position.
• Ignoring cold-temperature response. A standard-range module in an unheated enclosure may respond sluggishly or lose contrast in winter. Specify the grade for the coldest expected condition.
• Underspecifying the backlight and cable together. Current draw, cable length, and interface interact. A design that works on a short bench cable can fail with the production harness.

Each of these is inexpensive to fix at design review and costly to fix after a field return.

Selection Checklist and How to Request Samples

Before you request quotes, assemble a specification package that lets suppliers respond accurately:

• Format and character count (for example, 16x2 or 20x4), plus outline dimensions
• Fluid and polarizer preference (STN, FSTN, or VA), or a request for samples across options
• Interface (4-bit, 8-bit, SPI, or I2C) and connector type
• Backlight color and expected drive current
• Operating temperature range and any storage requirements
• Viewing direction and any contrast or appearance targets
• Annual volume, target unit cost, and required lead time
• Applicable standards — for medical or automotive programs, state the qualification expectations up front

When you request samples, ask for the exact configuration you intend to productionize, not a generic evaluation unit. Confirm the controller variant, fluid, and backlight match your specification, and test under the lighting and temperature conditions your product will actually face. A sample that differs from the production build tells you very little.
