Open Frame LCD Displays: Customization, Integration, and Selection Guide for Engineers

Why Engineers Are Turning to Open Frame Displays

If you are designing an industrial control panel, a medical patient monitor, or an in-vehicle infotainment system, the display is rarely a standalone component. It must become part of a larger assembly — sealed into a bezel, mounted behind glass, or integrated into a custom enclosure. This is where the open frame display comes into its own.

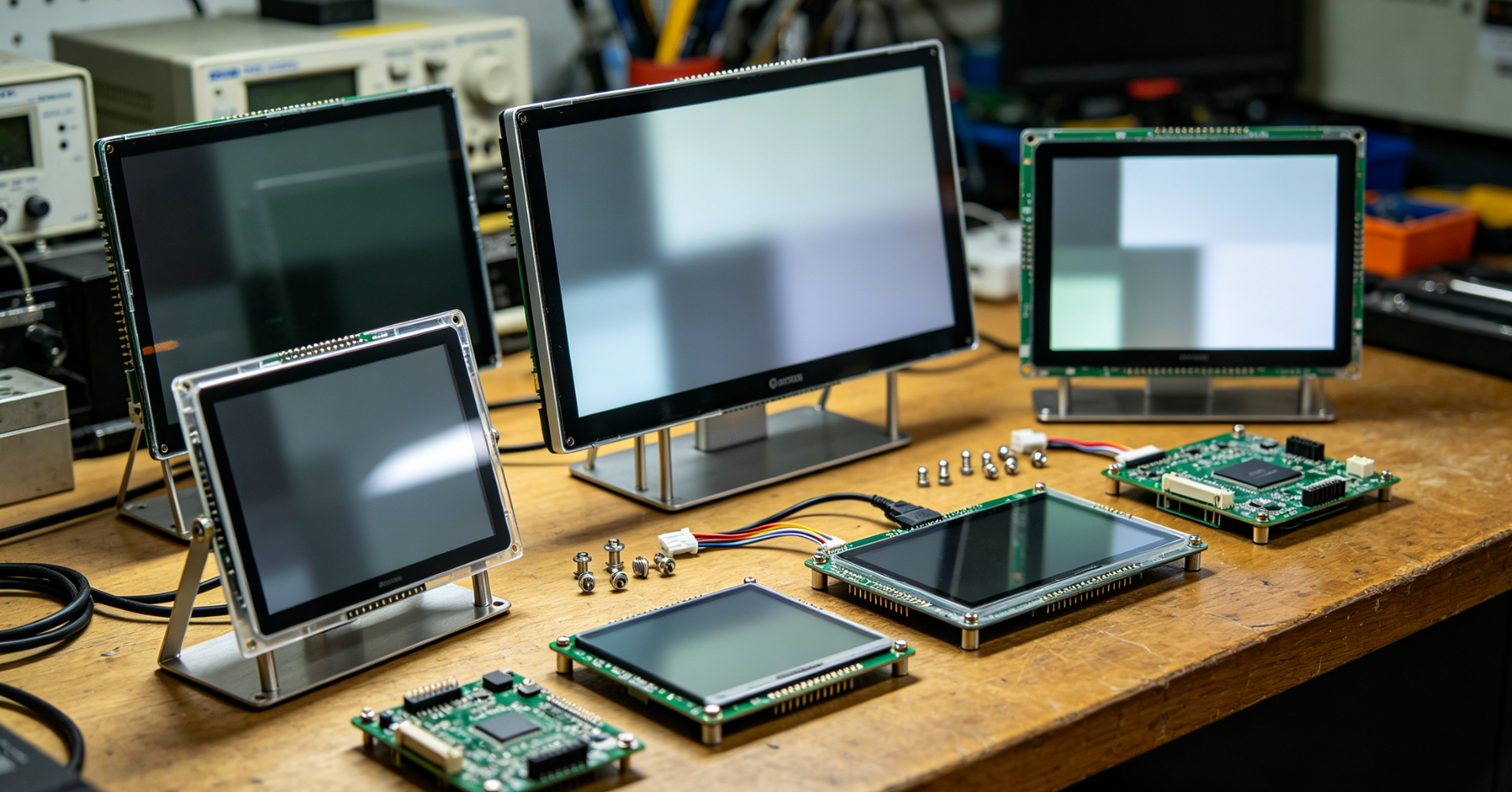

Unlike a fully enclosed consumer monitor, an open frame LCD module is a bare-bones assembly: the LCD panel, backlight, driver board, and mounting brackets, all without a cosmetic housing. For product developers, this means maximum design freedom. You control the final look, the sealing, and the thermal management. However, that freedom comes with responsibility.

Selecting the right open frame display and leveraging LCD module customization effectively can make the difference between a smooth product launch and a costly redesign. This guide walks you through what matters most when choosing an industrial TFT display for embedded display integration.

What Is an Open Frame Display and Where It Is Used

An open frame display is essentially the functional core of a monitor. It consists of an LCD panel bonded to a metal or plastic chassis, with a driver board and a standard interface — typically LVDS, eDP, or HDMI — protruding from the rear. There is no outer bezel, no stand, and no decorative casing. The mounting holes along the edges allow you to fasten it directly into your product’s front panel or enclosure.

Common Application Environments

Open frame displays are the backbone of many professional-grade systems. In industrial automation, you will find them inside HMI (Human-Machine Interface) panels on factory floors, where they must withstand vibration, dust, and temperature swings. In medical settings, they appear in patient monitoring carts and diagnostic imaging equipment, where cleanliness and reliability are non-negotiable. The transportation sector uses them in railway ticketing kiosks and marine navigation displays.

In each case, the display is not a consumer product — it is a component designed for a specific integration scenario.

Why OEMs Prefer Open Frame Designs

The primary advantage is flexibility. An open frame monitor allows you to specify only what you need: the panel size, resolution, brightness, and interface. You can then design the surrounding enclosure to meet your product’s unique industrial design and environmental sealing requirements. This approach also simplifies supply chain management. Instead of sourcing a finished monitor and then disassembling it — a common but wasteful practice — you source a purpose-built LCD module that is ready for integration.

Key Specifications to Consider for Open Frame LCD Modules

When evaluating an industrial TFT display for your project, you need to look beyond resolution and size. The specifications that matter most to embedded display integration are often the ones that affect system-level performance.

Brightness and Viewability

Indoor medical devices typically require 300 to 500 nits of brightness. For kiosks or automotive dashboards that may face sunlight, you will need 800 to 1500 nits. An open frame display with a standard backlight can be upgraded during LCD module customization to a high-brightness LED array. However, higher brightness generates more heat, which must be managed in your enclosure design.

Operating Temperature Range

Industrial and automotive environments demand a wider temperature tolerance than consumer displays. Look for an LCD module rated for -20°C to +70°C as a baseline. For extreme applications, such as outdoor equipment in cold climates, you may need a heater layer or a wider range of -30°C to +85°C. Relialink tests every open frame display across its specified temperature range to ensure reliable startup and consistent performance.

Interface Compatibility

The interface is how your embedded system talks to the display. LVDS remains the most common for industrial TFT displays up to Full HD resolution. For higher resolutions or thinner cable routing, eDP is becoming more prevalent. Some open frame modules also include HDMI or VGA inputs for simpler integration with single-board computers. Ensure your chosen LCD module’s interface matches your main processor’s output, or budget for a timing controller board.

Customization Options: Touch Panels, Optical Bonding, and High Brightness

One of the strongest arguments for choosing an open frame display over a fully enclosed monitor is the breadth of LCD module customization available. Relialink offers several key modifications that directly improve integration outcomes.

Touch Panel Integration

Adding touch is often the first customization request. Projected capacitive (PCAP) touch is the preferred choice for modern interfaces because it supports multi-touch and works through glass overlays. For medical devices that require frequent cleaning, PCAP with an optically bonded cover glass provides a sealed, easy-to-sanitize surface. Resistive touch remains a cost-effective option for gloved-hand operation in industrial settings. During customization, the touch panel can be laminated directly to the LCD, eliminating air gaps and reducing reflections.

Optical Bonding for Durability and Clarity

Optical bonding is a process where an adhesive layer fills the gap between the LCD and the cover glass or touch panel. This eliminates the internal air gap, which has several benefits. First, it dramatically reduces glare and improves contrast in bright environments. Second, it prevents condensation from forming between layers. Third, it makes the assembly more resistant to shock and vibration. For medical and outdoor industrial applications, optical bonding is not a luxury — it is a requirement for reliable embedded display integration.

High Brightness and Sunlight Readability

Standard LCD modules are often difficult to read under direct sunlight. By upgrading to a high-brightness backlight — typically using more LED strings or higher-efficiency LEDs — an open frame display can achieve 1000 nits or more. Combined with optical bonding, this creates a display that remains readable even in harsh ambient light. The trade-off is increased power consumption and heat output, which your system’s thermal design must accommodate.

Relialink’s Quality Control for Panel Integration and Durability

When you source an open frame display from Relialink, you are not just buying a panel. You are buying an integrated assembly that has passed rigorous quality checks designed for industrial and medical reliability.

Incoming and In-Process Inspection

Every LCD panel we receive undergoes an incoming quality inspection to check for dead pixels, uniformity issues, and cosmetic defects. During assembly, our technicians verify that the driver board is correctly aligned, the cable routing is secure, and the mounting brackets are properly torqued. This attention to detail prevents common integration problems like loose connectors or misaligned panels.

Environmental Stress Testing

Before an open frame monitor leaves our facility, a sample from each production batch is subjected to environmental stress testing. We run temperature cycling, humidity exposure, and vibration tests that simulate years of field use. This is especially critical for medical and automotive applications where failure is not an option. Our testing protocols align with industry standards such as IEC 60068 for environmental testing.

Long-Term Reliability and Supply Assurance

We understand that once you qualify a display into your product, you need consistent supply for years. Relialink proactively manages component lifecycle. If a panel is nearing end-of-life, we provide advance notice and work with you on a transition plan. This supply chain stability is a key advantage of partnering with an experienced LCD module manufacturer rather than sourcing commodity panels.

Open Frame vs Fully Enclosed Displays: When to Choose Which

The decision between an open frame display and a fully enclosed monitor depends on your product’s design requirements and your internal capabilities.

When to Choose an Open Frame Display

Choose an open frame display when you need to integrate the screen into a custom enclosure. This is almost always the case for industrial equipment, medical devices, and kiosks. You have full control over the cosmetic appearance, the sealing against dust and moisture, and the thermal path. Open frame monitors are also lighter and thinner, which matters for space-constrained designs.

When a Fully Enclosed Monitor Makes Sense

A fully enclosed monitor is a finished product with its own bezel, stand, and power supply. It is easier to deploy — you just mount it and connect power and video. This is suitable for office environments, digital signage, or any application where the display will be used as a standalone peripheral. However, it is rarely the right choice for OEM products because it limits design flexibility and often requires you to work around the existing enclosure.

Making the Right Choice for Your Project

If your team has mechanical design capability and you need a display that becomes part of your product, an open frame display is the clear winner. If you need a quick, off-the-shelf solution and cosmetic integration is not a priority, a fully enclosed monitor may suffice. For most industrial and medical OEMs, the open frame path offers better long-term value through LCD module customization and embedded display integration that aligns with your product’s identity.

Selecting the Right Partner for Your Open Frame Display

The success of your embedded display integration depends heavily on your LCD module supplier. You need a partner who understands industrial and medical requirements, offers genuine customization, and delivers consistent quality. Relialink has been providing custom open frame displays for over a decade, working with engineers to specify the right panel, touch interface, brightness level, and mounting solution. Our goal is to make your integration as seamless as possible, from prototype to production.

Looking for a reliable open frame display supplier for your next industrial or medical project? Contact Relialink today to discuss your LCD module customization requirements and get a quote tailored to your application.
