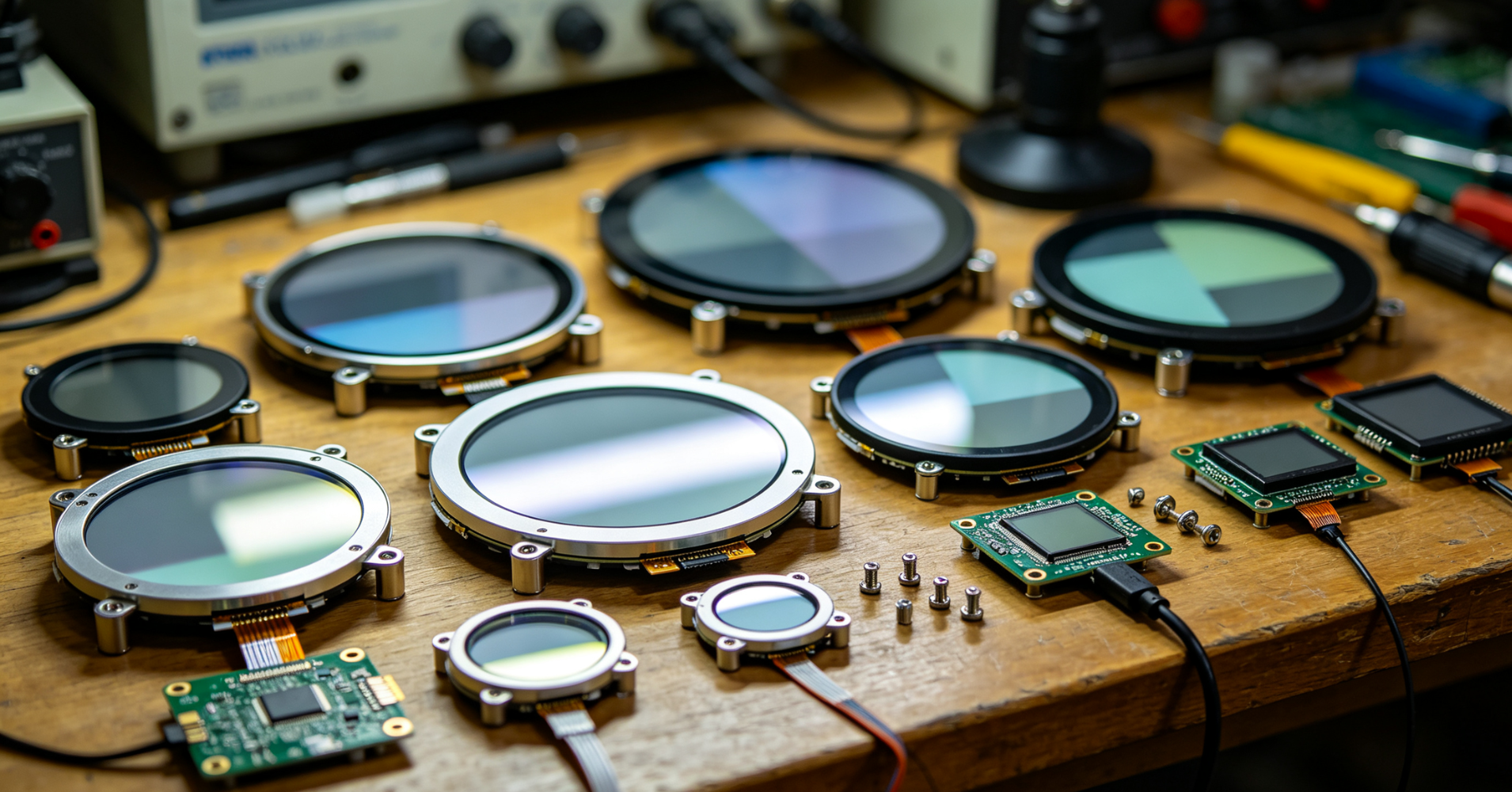

Round TFT Display Modules: Applications, Design Challenges, and Sourcing Guide
Why Round TFT Displays Are Reshaping Product Design
The shift from rectangular to circular display formats represents more than an aesthetic choice — it signals a fundamental rethinking of how users interact with information. For hardware engineers and product managers, the round TFT display offers a unique opportunity to break free from the traditional “black rectangle” interface paradigm. Unlike standard rectangular panels, circular LCD modules enable designers to create interfaces that feel more organic, intuitive, and visually integrated into the product form factor.
The core advantage of a round TFT display lies in its ability to present information in a way that mirrors how humans naturally perceive circular objects — clocks, gauges, dials. This makes circular LCD modules particularly effective for applications where glanceability and quick data comprehension matter. From a technical standpoint, modern round TFT displays can achieve the same brightness, contrast ratios, and viewing angles as their rectangular counterparts, with typical brightness levels ranging from 350 to 1000 nits depending on the application environment.
For OEMs considering a custom round display, the decision often comes down to user experience differentiation. In crowded markets like smart home devices or automotive interiors, a circular display can instantly signal premium design thinking. However, this differentiation comes with engineering trade-offs that must be carefully evaluated early in the product development cycle.
Top Application Scenarios for Circular LCD Modules
Wearable Devices and Smartwatches
The most visible application for round TFT displays remains the wearable market. Smartwatches with circular LCD modules offer a traditional watch aesthetic while delivering modern functionality. For engineers designing wearables, key requirements include low power consumption, sunlight readability (typically 500 nits or higher), and compact module thickness under 3mm. The round touchscreen display in this segment must also support glove touch and wet finger operation for outdoor use cases.
Smart Home Interfaces
Circular LCD modules are increasingly found in smart home control panels, thermostats, and smart speakers. A round TFT display here serves as a modern replacement for traditional analog gauges and dials. The design advantage is clear: a circular display can mimic the familiar look of a thermostat dial while providing dynamic digital content. For these applications, engineers should prioritize wide viewing angles (typically 80/80/80/80) and optical bonding to eliminate the air gap that causes reflection in bright living spaces.
Automotive Instrument Clusters and HMI
The automotive sector represents a growing opportunity for custom round displays. From center console knobs with embedded displays to dashboard instrument clusters, round TFT displays are being used to create distinctive brand identities inside vehicles. Automotive-grade requirements include extended operating temperature ranges (-40°C to +85°C), high brightness for daytime readability (800-1000 nits), and compliance with AEC-Q100 standards for reliability.
The round touchscreen display in vehicles must also withstand vibration, thermal cycling, and direct sunlight exposure without performance degradation.
Industrial Equipment and Medical Devices
Industrial panel meters, medical monitoring equipment, and laboratory instruments are adopting circular LCD modules for their ability to present data in a gauge-like format. In these environments, the display must maintain consistent performance across wide temperature ranges and resist dust and moisture ingress. Engineers often specify IP-rated enclosures paired with the round TFT display to meet harsh environment requirements.
Key Engineering Challenges in Designing Round TFT Modules
Pixel Matrix and Resolution Constraints
The most fundamental challenge in designing a round TFT display lies in the pixel matrix itself. Standard rectangular LCD panels have a simple grid structure where each pixel is addressed by row and column drivers. A circular LCD module requires a custom mask design that effectively “cuts” the circular viewing area from a rectangular substrate. This creates unused corner areas that must be managed through mechanical design or hidden behind bezels.
Resolution selection for round TFT displays requires careful consideration. Common resolutions range from 240x240 pixels for small wearable displays up to 480x480 or higher for automotive applications. The effective pixel density (PPI) must be calculated based on the circular viewing area diameter, not the theoretical rectangular area. For text readability, a minimum of 150 PPI is recommended for close-viewing applications like smartwatches.
Driver IC and Interface Integration
Driving a round TFT display presents unique challenges for the timing controller and driver ICs. Standard rectangular display controllers expect a rectangular frame buffer, meaning the unused corner pixels must be either masked in software or handled by the display driver. Most custom round display solutions use a rectangular driver IC with the circular active area defined through register settings or firmware configuration.
Common interface options for circular LCD modules include:
- SPI – Suitable for low-resolution wearable displays with limited data throughput
- RGB parallel – Offers higher refresh rates for mid-resolution applications
- MIPI DSI – Preferred for high-resolution automotive and industrial displays requiring video playback
- LVDS – Used in larger round displays for industrial equipment
Optical Bonding and Touch Integration
Integrating a round touchscreen display with the LCD module requires precision alignment that exceeds rectangular panel requirements. The circular shape creates registration challenges during the optical bonding process, where the touch sensor and cover glass must be perfectly centered over the active area. Any misalignment is immediately visible to the user.
Optical bonding is strongly recommended for round TFT displays used in outdoor or high-ambient-light environments. The process eliminates the air gap between the display and cover glass, reducing reflections and improving contrast by up to 400%. For automotive and medical applications, full lamination with optically clear adhesive (OCA) is typically required to meet anti-glare and anti-fingerprint specifications.
Customization Capabilities: Resolution, Interface, and Optical Bonding
Resolution and Aspect Ratio Customization
As a TFT display manufacturer, Relialink offers custom round display solutions with resolutions tailored to specific application requirements. For wearable applications, we typically recommend 240x240 or 360x360 resolution with RGB interface for optimal power efficiency. For automotive and industrial applications, 480x480 and 720x720 resolutions with MIPI DSI interface provide the necessary bandwidth for smooth animations and data visualization.
The aspect ratio of a round TFT display is fixed at 1:1 by the circular geometry, but the effective usable area can be optimized through custom mask design. Engineers should specify the exact active area diameter and corner radius requirements during the initial specification phase to ensure the driver IC firmware is properly configured.
Interface Selection and Backlight Design
Interface selection for custom round displays depends on the host processor capabilities and data throughput requirements. For battery-powered wearables, SPI or QSPI interfaces minimize pin count and power consumption. For high-refresh automotive HMI applications, MIPI DSI with two or four lanes provides the necessary bandwidth.
Backlight design for circular LCD modules requires special attention to uniformity. Standard edge-lit backlights designed for rectangular panels produce uneven illumination in the corners of a round display. Custom light guide plates with circular light extraction patterns are typically required to achieve uniform brightness across the entire viewing area. LED count and current drive must be calculated based on the target brightness and operating temperature range.
Optical Bonding and Cover Glass Options
Optical bonding transforms a standard round TFT display into a rugged, high-performance module suitable for demanding environments. The bonding process involves laminating the display to a cover glass or touch sensor using optically clear adhesive. For round touchscreen displays, this process must account for the circular geometry to prevent air bubbles and alignment errors.
Cover glass options for custom round displays include:
- Standard soda-lime glass – Cost-effective for indoor applications
- Aluminosilicate glass – Higher strength for wearable and portable devices
- Chemically strengthened glass – Meets automotive and industrial impact requirements
- Anti-glare and anti-reflective coatings – Critical for outdoor readability
How to Evaluate and Source Reliable Round TFT Display Suppliers
Technical Capability Assessment
When evaluating a TFT display manufacturer for custom round display projects, the first consideration is their experience with non-rectangular panel design. Ask potential suppliers about their design-for-manufacturing (DFM) process for circular LCD modules. A supplier with proven experience in round TFT displays will have established processes for mask design, driver IC configuration, and backlight customization.
Request specific references for round display projects in your target industry. For automotive applications, verify that the supplier has IATF 16949 certification and experience with AEC-Q100 compliant components. For medical devices, ISO 13485 certification and IPC-6012 class 3 assembly capabilities are essential.
Supply Chain and Lead Time Considerations
Custom round displays require longer lead times than standard rectangular panels due to the custom mask and tooling requirements. Typical lead times range from 8 to 12 weeks for initial samples, with production lead times of 6 to 8 weeks after approval. Engineers should factor these timelines into their product development schedules.
Component availability is another critical factor. The driver ICs used for round TFT displays may have longer lead times or minimum order quantities compared to standard display controllers. Work with your supplier to identify alternative IC options that can be qualified as second sources.
Quality and Reliability Verification
Before committing to production quantities, implement a rigorous qualification process for your custom round display. Key test items include:
- High-temperature operating life test (85°C for 1000 hours)
- Temperature cycling (-40°C to +85°C, 100 cycles)
- Humidity test (85% RH at 60°C for 500 hours)
- Vibration and mechanical shock (per application-specific standards)
- Optical performance verification (brightness, uniformity, color coordinates)
A reliable TFT display manufacturer will provide detailed test reports and maintain traceability for all production batches.
Cost Structure and MOQ Planning
Custom round displays typically carry a non-recurring engineering (NRE) fee covering mask design, tooling, and initial sample production. MOQ requirements vary by display size and complexity, with smaller wearable displays having higher MOQs due to panel cutting efficiency.
For cost optimization, consider standardizing your round display specification across multiple product lines. A single custom round display design that serves both a wearable and a smart home product can reduce overall NRE and unit costs through higher volume commitments.
Making the Right Choice for Your Next Product
The round TFT display market continues to expand as more industries recognize the value of circular interfaces for user experience differentiation. Whether you are designing a smartwatch, automotive HMI, or industrial gauge, the key to success lies in early collaboration with an experienced TFT display manufacturer who understands the unique challenges of circular LCD module design.
Looking for a reliable round TFT display supplier for your next project? Contact Relialink today to discuss your custom display requirements and receive a technical feasibility assessment for your application.
