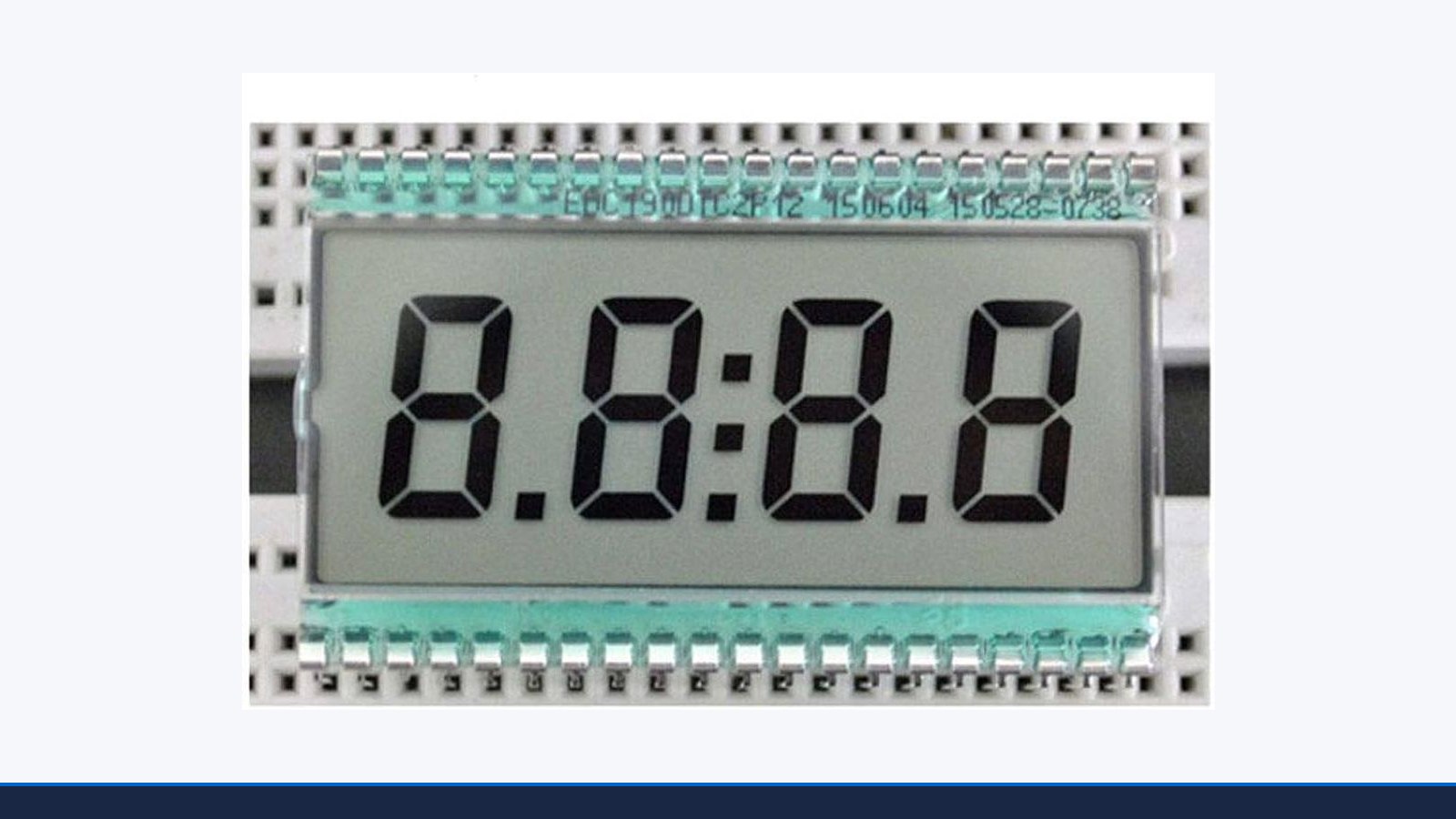

Segment LCD Displays for Meters and Appliances: Custom Glass and Drive Modes
Why segment LCDs still win in meters and appliances
Walk through any utility metering pilot, white goods platform review, or HVAC controls roadmap and you will find the same quiet workhorse: the custom segment LCD. It is not glamorous, it does not bend, and nobody puts it on a trade show banner. Yet for gas meters, water meters, electricity sub-meters, thermostats, washing machines, and medical bench instruments, a custom segment LCD display remains the default choice for one reason — it delivers the lowest cost per decade of service life of any display technology available today.
The pressure on your bill of materials has not eased. Panel pricing has been volatile, freight costs are less predictable than they were five years ago, and product lifetimes in metering and appliance programmes routinely stretch past ten years. Meanwhile, design teams are being asked to add more annunciators, more icons, and better low-light legibility without adding a single cent to the unit cost. That combination — long life, tight cost, fixed function — is exactly where segment LCDs outperform TFT, OLED, and e-paper.
This guide is written for the people who have to sign off the tooling purchase order and the supply agreement. It covers the engineering trade-offs that drive cost (static versus multiplex drive, glass customisation, power budget) and the commercial mechanics that drive schedule (NRE, lead time, and how to amortise both across a ten-year field life).
Static versus multiplex drive: pin count, contrast and cost
The single biggest architectural decision in a custom segment LCD project is the drive scheme, because it determines the glass layout, the IC pin count, the contrast behaviour, and ultimately the unit price.
How each mode works
In static drive, every segment has its own dedicated backplane and frontplane connection. Each segment is driven continuously with a DC-balanced waveform, so the RMS voltage across the liquid crystal is always at full drive level. In multiplex drive (commonly 1/2, 1/3, 1/4, or up to 1/8 and beyond), segments share common backplane lines and are time-sliced. A 1/4 multiplex display with 40 segments needs roughly 14 connections instead of 41.
The practical trade-offs
| Criterion | Static drive | Multiplex drive |
|---|---|---|
| Pin count for 40 segments | ~41 | ~14 (1/4 mux) |
| Contrast ratio | Highest | Reduced as mux ratio rises |
| Viewing angle | Widest | Narrows with higher mux |
| Driver IC cost | Higher (more pins) | Lower |
| Glass routing complexity | Higher | Lower |
| Suitability | Wide temperature, high-contrast needs | Cost-sensitive, moderate environments |
The rule of thumb our engineers apply: if the product must stay legible from a wide angle in direct sunlight or at −30 °C, and the segment count is under roughly 60, static drive is usually worth the extra pins. If the product is an indoor appliance panel viewed head-on at room temperature, 1/4 multiplex will typically save meaningful cost on both the driver IC and the glass.
A middle path many metering customers take is 1/3 multiplex with a bias that keeps the operating margin comfortable across the full temperature range. It is a compromise, but a well-understood one — and it is the sort of decision best made with the module supplier’s engineering team before the glass artwork is frozen.
Custom glass: segment patterns, icons, viewing angle and polariser choices
Custom segment LCD glass is where your product’s identity lives. Unlike a TFT, where you select a standard resolution and move on, a segment display is drawn from scratch — every digit height, every battery icon, every unit annunciator, every decimal point is a mask layer in the photolithography process.
What you are actually specifying
- Segment geometry: digit height, stroke width, and spacing. Stroke width must be balanced against the multiplex ratio; thin strokes lose contrast faster under multiplexing.
- Icons and annunciators: low-battery, signal strength, units (kWh, m³, °C), and status flags. Each icon adds to the artwork but not usually to the pin count if it shares a backplane.
- Viewing angle direction: 6 o’clock, 12 o’clock, or custom. This is set by the polariser orientation and the liquid crystal twist, and it is fixed at tooling. Getting it wrong is expensive.
- Polariser grade: reflective, transflective, or transmissive. Transflective with a backlight is the standard for meters that must be read in daylight and at night. For always-on, battery-powered devices, a reflective polariser with no backlight can cut power draw dramatically.
- Operating temperature range: standard, wide (−20 °C to +70 °C), or extended (−30 °C to +80 °C). Extended ranges require different liquid crystal mixtures and affect both cost and the achievable multiplex ratio.
The specification trap
The most common and most expensive mistake we see is a specification written around a competitor’s datasheet rather than around the actual use case. A meter read once a month by a technician has very different contrast and viewing angle requirements from an appliance panel the consumer stares at daily.
Be explicit about the environment: ambient light levels, expected viewing distance, whether a backlight is present, and the temperature extremes the unit will actually see in the field. These inputs drive the polariser, the LC mixture, and the drive scheme together — and they are far cheaper to settle before NRE is committed.
Power budget for always-on and battery-powered devices
Segment LCDs are famous for low power, but “low power” is not a number — it is a system property that depends on drive scheme, backlight, and duty cycle.
Where the current actually goes
- The LCD itself: a segment display draws microamps. The liquid crystal is capacitive, and the dominant consumption is the driver’s switching losses, not the panel.
- The driver IC: static drive typically consumes more per segment than multiplex because more drivers are active simultaneously. A multiplexed driver with a low-power sleep mode often wins on average current.
- The backlight: this is almost always the largest consumer. An LED backlight can draw tens of milliamps — orders of magnitude more than the panel. If the product can use a reflective polariser and ambient light, the power saving is substantial.
- The controller/MCU: the display’s refresh requirement dictates whether the MCU can stay in deep sleep. A static display with a hardware LCD peripheral can run from a low-power oscillator while the core sleeps.
Practical guidance for battery-powered meters
For a device expected to run five to ten years on a lithium cell, the design conversation should start with the backlight, not the panel. Ask whether the display can be read reflectively in the deployment environment. If yes, you may eliminate the backlight entirely. If no, consider a backlight that only activates on user interaction — a button press or a magnetic reed switch — rather than continuous illumination.
Also confirm the driver’s bias generation: some low-power LCD drivers generate bias internally with charge pumps that add quiescent current. Externally biased designs can be more efficient in always-on applications, at the cost of a few extra components. These are the details that separate a five-year battery life from a two-year one, and they are best resolved with the module supplier during specification, not after the first prototype.
Tooling economics: what drives NRE and how to amortise it
Custom segment LCD tooling is a one-time non-recurring engineering (NRE) charge, and understanding its components helps you negotiate and plan.
The main NRE components
- Photomask set: one mask per glass layer (frontplane, backplane, and any special layers). Segment count and glass size affect mask complexity but the dominant driver is the number of layers and the artwork density.
- Glass tooling and cutting: custom glass sizes require cutting and edge-finishing setup.
- Assembly fixture: the bonding fixture for the driver IC and any FPC/COG assembly is custom to your layout.
- First-article validation: samples, optical inspection, and temperature cycling before mass production release.
NRE for a typical meter or appliance segment display is modest compared with a TFT module, but it is not zero, and it scales with complexity: extended temperature ranges, custom polarisers, and high segment counts all add to the tooling and validation burden. The key commercial insight is that NRE is a fixed cost amortised across total programme volume. A display with 50,000 units over its life spreads tooling far thinner per unit than one with 5,000 — which is why low-volume programmes should discuss whether a near-standard glass platform can be adapted instead of a full custom design.
How to aim it
- Lock the segment pattern and viewing angle before approving NRE. Artwork changes after masks are cut are the most common source of schedule and cost overrun.
- Ask for a tooling breakdown so you can see which line items are fixed and which scale with your specification.
- Negotiate NRE amortisation explicitly if volumes are uncertain; some suppliers will fold tooling into unit pricing at a defined volume threshold.
Quality and lifetime expectations for 10-year field life
Metering and appliance products are not consumer electronics. A washing machine controller may see 5,000 cycles; a gas meter may sit in an unheated outdoor cabinet for fifteen years. Your segment LCD display should be specified for that reality.
Look for suppliers who can speak to:
- Temperature cycling and humidity testing to IEC or equivalent standards, with actual test reports rather than claims.
- UV and polariser degradation behaviour, particularly for outdoor meter enclosures.
- Seal integrity and the risk of delamination over long field life.
- Automotive-grade or medical-grade process discipline where your end market requires it — IATF 16949 lineage, ISO 13485, or equivalent quality management.
- Long-term supply commitments and last-time-buy terms, because a ten-year product needs a supplier who will still be making that glass in year eight.
Honest suppliers will tell you where the limits are. A segment LCD is extraordinarily durable, but a reflective polariser in direct desert sun will age, and a multiplexed display at −40 °C will lose contrast. Knowing the boundaries lets you design around them.
Drive modes compared
| Drive mode | Segment pins | Contrast | Power use | Typical use |
|---|---|---|---|---|
| Static | One per segment | Highest | Higher | Small icon displays |
| 1/4 multiplex | Shared backplanes | Good | Lower | Meter readouts |
| 1/8 multiplex | Fewer pins | Moderate | Lowest | Dense numeric panels |
Options referenced above are available as segment LCD displays and custom segment glass; for application context see appliance control panels.
Specification checklist and sample request
Before you issue an RFQ, assemble the following. It will shorten the quotation cycle and reduce the risk of a costly redesign.
- Segment map and artwork: digit count, icon list, decimal points, and a dimensioned drawing of the active area.
- Drive scheme preference: static or multiplex, and the multiplex ratio if known.
- Viewing direction: 6 o’clock, 12 o’clock, or custom, plus expected viewing distance.
- Polariser and backlight: reflective, transflective, or transmissive; backlight colour and intensity if applicable.
- Operating and storage temperature range: the real field range, not a padded one.
- Electrical interface: pinout, connector or FPC, and driver IC preference if you have one.
- Mechanical constraints: glass outline, thickness, mounting, and window dimensions.
- Quality and certification requirements: standards, test reports, and end-market certifications.
- Volume forecast: annual and lifetime, so tooling amortisation can be quoted accurately.
- Target schedule: prototype date, qualification date, and production start.
Send this pack to a supplier early and ask for a sample built to your specification. A physical sample under your own ambient lighting conditions will tell you more about contrast and viewing angle than any datasheet — and it is the fastest way to validate a drive scheme before you commit tooling budget.
If you are planning a meter or appliance programme and want to pressure-test a static versus multiplex decision, or get a transparent NRE and lead-time estimate for custom segment LCD glass, the Relialink engineering team is ready to review your specification and return a quotation with the tooling breakdown itemised. Contact Relialink today to discuss your custom segment LCD display requirements and request samples for your next design review.
