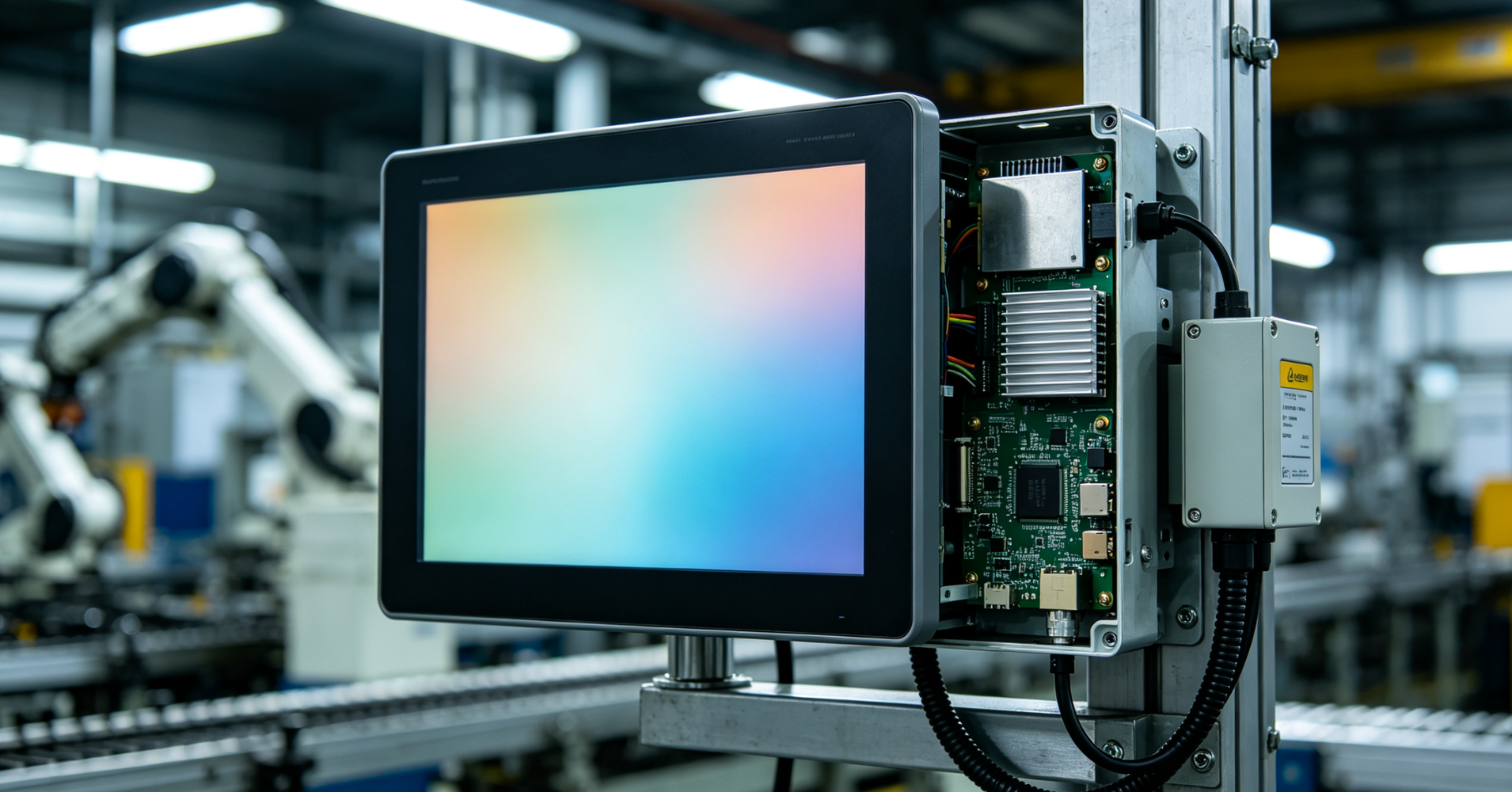

The Hardware Behind the Dashboard: Selecting Industrial LCD Modules for Operational Data Displays

Why Off-the-Shelf Displays Fail on the Factory Floor

Factory floor dashboards are the nerve centers of modern manufacturing operations. They display real-time production metrics, machine status, quality control data, and safety alerts. But when hardware engineers or procurement managers try to use consumer-grade or commercial displays for these critical applications, the results are often disappointing.

The factory environment is fundamentally different from an office or retail space. Commercial displays are designed for controlled indoor environments with stable temperatures, low ambient light, and minimal interference. On the factory floor, displays face electromagnetic interference from heavy machinery, temperature fluctuations from nearby processes, continuous vibration from equipment, and dust particles in the air. A standard display might last six months in such conditions before experiencing backlight failure, image retention, or complete system shutdown.

Moreover, operational data dashboards must run 24/7. Commercial displays typically operate at 50% duty cycle and lack the thermal management needed for continuous operation. The result is premature degradation, unexpected downtime, and costly replacements. For hardware engineers and procurement directors, understanding these failure points is the first step toward selecting the right industrial LCD module for factory dashboard applications.

Key LCD Specifications for 24/7 Operational Dashboards

When selecting an industrial LCD module for a factory dashboard, several technical specifications become critical. These parameters determine whether the display will perform reliably over years of continuous operation.

Brightness and Contrast for High Ambient Light

Factory floors often have bright overhead lighting, large windows, or direct sunlight near loading docks. An industrial LCD module for factory dashboard use should offer brightness levels of at least 800 to 1500 nits. This ensures readability even in challenging lighting conditions. Contrast ratios should exceed 1000:1 to maintain clear differentiation between data points, graphs, and background elements.

Wide Viewing Angles for Multi-Operator Scenarios

Operational data displays are often mounted on walls, pillars, or mobile carts. Workers need to read the display from various angles—standing, walking past, or viewing from a distance. IPS (In-Plane Switching) technology provides 178-degree viewing angles in both horizontal and vertical planes, ensuring consistent color and contrast regardless of viewer position.

Long Backlight Lifespan

Backlight failure is one of the most common reasons for display replacement. For 24/7 operation, look for industrial LCD modules with LED backlight rated for 50,000 to 100,000 hours. This translates to 5.7 to 11.4 years of continuous use. Relialink’s modules use high-grade LED arrays with advanced thermal management to maximize backlight lifespan.

Interface Compatibility

Factory dashboards often integrate with PLCs, SCADA systems, and digital signage players. Common interface requirements include HDMI, DVI, VGA, and LVDS. Some applications require RS-232 or USB for touch input. Ensure the industrial LCD module supports the interfaces your control system uses.

Environmental Hardening: Temperature, Dust, Vibration and More

Operational data displays on factory floors must withstand conditions that would destroy standard commercial displays. Environmental hardening is not optional—it is a requirement for reliable long-term operation.

Wide Temperature Range Operation

Factory environments can range from freezing cold near unheated storage areas to extreme heat near furnaces, ovens, or welding stations. Industrial LCD modules for rugged display for manufacturing applications should operate reliably from -20°C to +70°C ambient temperature. Some specialized modules support extended ranges from -30°C to +85°C. This requires careful selection of LCD panel fluid, backlight components, and driver electronics that can handle thermal stress without failure.

Dust and Particulate Protection

Dust is a constant presence on many factory floors. Fine particles can enter display enclosures through ventilation gaps, accumulating on internal components and causing overheating or electrical shorts. Look for industrial LCD modules with IP54 or higher ingress protection ratings. Sealed bezels, gaskets, and filtered ventilation systems prevent dust ingress while allowing heat dissipation.

Vibration and Shock Resistance

Heavy machinery, forklifts, and production lines generate continuous low-frequency vibration. Displays mounted on equipment or near production lines must withstand these forces without loosening connections or damaging internal components. Industrial LCD modules designed for rugged display for manufacturing applications use reinforced mounting brackets, secured cable connections, and shock-absorbing materials to maintain reliability.

Electromagnetic Interference (EMI) Shielding

Large motors, welders, and high-frequency switching equipment generate significant electromagnetic interference. This can cause display flickering, image distortion, or complete signal loss. Proper EMI shielding on the display module, along with filtered power supplies and shielded cables, prevents these issues. Relialink designs its industrial LCD modules with metal shielding and ferrite cores to meet industrial EMI standards.

Integration with Common Digital Signage Platforms and Protocols

A factory dashboard display is only as valuable as its ability to receive and display data from your existing systems. Understanding integration requirements helps avoid compatibility issues during deployment.

Digital Signage Platform Compatibility

Many factory dashboards use digital signage software for content management and scheduling. Popular platforms include Scala, ScreenCloud, OptiSigns, and NoviSign. Ensure the industrial LCD module you select supports the hardware requirements of your chosen platform. This typically means compatibility with Android or Linux-based media players, or support for external media players via HDMI input.

Protocol Support for Real-Time Data

Operational data displays often need to show real-time metrics from PLCs, sensors, or databases. Common protocols include OPC UA, Modbus TCP, MQTT, and REST APIs. Some industrial LCD modules include built-in computing capabilities that can process these protocols directly. Others require an external controller. For digital signage hardware selection, consider whether you need a “smart” display with integrated processing or a “dumb” display that relies on an external media player.

Remote Management Capabilities

Factory maintenance teams cannot physically check every display daily. Remote management features like auto-reboot scheduling, content update over network, and health monitoring are valuable. Look for industrial LCD modules that support remote management via Ethernet or Wi-Fi, with web-based configuration interfaces.

Touch Input Options

Some factory dashboards benefit from touch interaction for drilling down into data or acknowledging alerts. Resistive touch works with gloves and in dusty environments. Capacitive touch offers better optical clarity but requires bare fingers or specialized styluses. Consider your operators’ working conditions when selecting touch technology.

How Relialink’s Customizable Industrial LCD Modules Solve Real Manufacturing Challenges

Relialink understands that every factory floor has unique requirements. Off-the-shelf solutions rarely fit perfectly. That is why we offer customizable industrial LCD modules designed specifically for operational data displays and digital signage hardware selection in demanding environments.

Our modules start with high-brightness IPS panels rated for 50,000-hour continuous operation. We then add environmental hardening based on your specific application: wide-temperature LCD fluid for extreme environments, IP54-rated enclosures for dusty floors, and EMI shielding for electrically noisy locations. We support multiple interface options including HDMI, DVI, VGA, LVDS, and RS-232, ensuring compatibility with your existing control systems.

For customers requiring integrated computing, we offer Android and Linux-based media player options that support popular digital signage platforms and industrial protocols. Remote management features allow your maintenance team to monitor display health, update content, and reboot modules from a central location.

Relialink’s engineering team works directly with your hardware engineers and procurement managers to define the exact specifications needed. We provide samples for evaluation, technical documentation, and ongoing support throughout the deployment lifecycle. Our manufacturing processes meet ISO 9001 standards, and we can support medical and automotive certifications when required.

Making the Right Choice for Your Factory Dashboard

Selecting the right industrial LCD module for factory dashboard applications requires balancing performance, reliability, and cost. Start by documenting your environment: temperature range, dust levels, vibration sources, and ambient light conditions. Then define your integration requirements: interfaces, protocols, and remote management needs. Finally, evaluate suppliers based on their ability to customize and support your specific application.

Looking for a reliable industrial LCD module supplier for your next factory dashboard project? Contact Relialink today to discuss your custom display requirements and get a quote tailored to your operational data display needs.
