Wide Temperature LCD Modules: -40 to +85 C Guide

Learn how to specify and verify wide temperature LCD modules rated -40°C to +85°C, including failure modes at both extremes and test protocols before production.

What a -40°C to +85°C Rating Actually Covers

A wide temperature LCD module rated for -40°C to +85°C is often treated as a single, simple specification. In practice, that number hides several distinct ratings that determine whether your product survives its first winter in the field. If you are sourcing displays for outdoor kiosks, vehicle dashboards, or cold-chain medical devices, understanding what the rating covers—and what it does not—is the difference between a reliable product and a costly field failure.

When engineers specify a wide temperature LCD, they are usually quoting the operating range. But a datasheet may list separate figures for operating temperature, storage temperature, and sometimes a narrower “guaranteed contrast” window. These are not interchangeable.

Operating vs. Storage Temperature

Operating range: The module is powered and functioning. The display must remain readable and within specified optical and electrical limits while energized at these temperatures.
Storage range: The module is unpowered. Typically wider than the operating range, but excursions outside it can cause permanent damage—particularly to polarizers and liquid crystal alignment.
Survival vs. performance: A module may “survive” at -40°C but respond so slowly that it is unusable for the first several minutes after cold start.

Panel vs. Backlight Rating

The LCD panel and the backlight often have different temperature limits. The liquid crystal mixture may operate to -40°C, while the LED backlight driver or the LEDs themselves may be rated more narrowly. A module sold as “-40°C to +85°C” should have both subsystems verified across that span. Ask your supplier for separate panel and backlight qualification data—not a single combined figure.

Failure Modes at Low Temperature: Response Time, Contrast, Ghosting

Cold is where liquid crystal physics becomes visible to the end user. As temperature drops, the viscosity of the liquid crystal mixture increases, and molecules respond more slowly to the applied electric field.

Response Time Degradation

At -40°C, response times can stretch from tens of milliseconds at room temperature to several hundred milliseconds or more. For static displays this may be acceptable. For any application involving animation, cursor movement, or fast-updating process data, it can render the product unusable. Specify a maximum acceptable response time at your lowest operating temperature, not at 25°C.

Contrast Loss and Ghosting

Low temperatures can reduce contrast ratio and produce ghosting—where a previous image lingers faintly. This is especially pronounced in STN and older passive technologies. If your application displays critical safety or medical data, ghosting is a functional defect, not a cosmetic one.

Cold-Start Behavior

Many failures happen in the first minutes after power-on in a cold environment. Backlight drivers may fail to strike, heaters (if fitted) take time to bring the panel into its usable window, and the display may show a blank or distorted image during warm-up. Define your cold-start acceptance criteria explicitly.

Failure Modes at High Temperature: Contrast Drop, Polarizer Yellowing, Backlight Derating

Heat stresses materials rather than physics. At +85°C, the concerns shift from response time to long-term degradation.

Contrast Drift

High temperatures can shift the liquid crystal’s operating point, reducing contrast and altering the optimal drive voltage. Modules with temperature compensation circuitry handle this better; uncompensated designs may show visible contrast loss at the top of the range.

Polarizer Yellowing and Delamination

Polarizers are among the most temperature-sensitive components. Sustained high-temperature operation can cause yellowing, reduced transmission, and in severe cases delamination at the panel edges. This is a slow, cumulative failure—it may not appear in a short bench test but will surface after months in the field.

Backlight Derating and Lifetime

LED backlights lose luminous output and lifetime at elevated temperatures. A backlight rated for a certain brightness at 25°C may deliver noticeably less at +85°C, and its useful life shortens. Confirm the brightness specification at your maximum operating temperature, and check whether the driver is thermally derated.

Panel Technology Choices: STN, FSTN, VA and TFT Under Temperature Stress

Technology selection is a temperature decision as much as a cost decision.

STN / FSTN: Cost-effective for static and low-information displays. More sensitive to low-temperature response time and ghosting; contrast at temperature extremes is moderate.
VA (Vertical Alignment): Strong contrast at room temperature, but VA modes can be more temperature-sensitive in response time and require careful compensation.
TFT: The broadest usable window for dynamic content. Modern TFT panels with appropriate liquid crystal mixtures and temperature compensation handle -40°C to +85°C well, making them the default for automotive-grade displays and industrial HMIs.

There is no universally “best” technology—only the best fit for your content type, update rate, and budget across the specified range.

Backlight and Driver Behavior at Extremes

The backlight is frequently the weakest link in a wide-temperature design.

LED forward voltage shifts with temperature, which can affect driver behavior and brightness consistency.
Driver ICs have their own operating limits; a driver rated only to +70°C inside an +85°C module is a latent failure.
Heaters are sometimes added for cold-start performance; they add cost, power draw, and complexity, so specify them only where cold-start usability genuinely requires it.

Ask for the backlight and driver temperature specifications separately from the panel, and confirm they match the module’s advertised range.

Verification Tests to Demand from a Supplier (Thermal Cycling, Cold Start, Thermal Shock)

A datasheet claim is a starting point, not proof. Before committing to a production order, require documented verification.

Thermal Cycling

Repeated cycling between the temperature extremes tests solder joints, connectors, and material interfaces. Ask for the number of cycles and the dwell times used.

Cold Start Test

Power the module at the minimum temperature and record time-to-usable-image, brightness ramp, and any artifacts. This is the test most often skipped and most often the source of field complaints.

Thermal Shock

Rapid transitions between hot and cold stress materials differently than gradual cycling and can reveal delamination and seal failures. Ensure the supplier’s protocol matches your real-world environment.

Optical and Electrical Checks at Temperature

Contrast, brightness, response time, and current draw should be measured at the extremes, not extrapolated. Request the raw data.

Specifying for Automotive and Outdoor Installations

Automotive-grade displays typically demand documented qualification against industry standards and extended reliability testing. Outdoor installations add solar loading, UV exposure, and condensation to the thermal challenge.

Specify automotive-grade qualification where the application warrants it, and ask for the test evidence.
Account for self-heating: an enclosed module in a sun-loaded enclosure can exceed ambient by a significant margin.
Consider condensation and frost at cold extremes, which affect both optics and electronics.
Match the module rating to the enclosure temperature, not the ambient air temperature.

Checklist Before You Freeze the Datasheet

Use this list when evaluating any wide temperature LCD supplier:

Separate operating, storage, and guaranteed-performance ranges documented.
Panel and backlight/driver rated independently across the full range.
Response time and contrast specified at the temperature extremes.
Cold-start behavior defined and tested.
Thermal cycling and thermal shock protocols with cycle counts provided.
Automotive-grade or industry-standard qualification evidence where required.
Self-heating and enclosure effects accounted for in your thermal budget.

Getting these answers early prevents expensive redesigns later. A supplier who can provide this data readily is signaling that they understand wide-temperature design—not just catalog marketing.

If you are evaluating display options for a demanding environment, our team can walk you through the trade-offs. Contact Relialink to discuss your wide temperature LCD module requirements and request verification data for your application.

A Test Protocol You Can Run Before You Commit

A datasheet temperature range is a claim; a test report is evidence. Before releasing a production order for a wide-temperature program, ask for data on the specific configuration you are buying — not a generic panel family. The following sequence is the minimum worth requesting, and it can be run by the module supplier or by an independent lab against references such as IEC 60068-2-1 (cold), IEC 60068-2-2 (dry heat), IEC 60068-2-14 (thermal shock) and IEC 60068-2-30 (damp heat, cyclic).

Cold start. Soak the module at the low limit for at least two hours unpowered, then power it at that temperature and record first-pixel response, contrast recovery time and any driver initialisation failure. Response time at -40 °C is typically several times slower than at +25 °C; what matters is whether it recovers within the time your product needs, not whether it is slow at first.
Dry heat soak. Hold at the high limit for 24–48 hours powered, then inspect contrast uniformity, polariser discolouration and any permanent change in backlight output. A module that only passes unpowered heat soak has not been tested for self-heating.
Thermal shock. Cycle between the two limits, with a short dwell at each, for at least 50–100 cycles. Failures here are usually mechanical — FPC delamination, solder fatigue at the connector, seal integrity — and they appear at the edges of the panel rather than in the centre.
Damp heat, cyclic. Condensation is the failure mode most often missed in dry-climate labs. Cycling humidity alongside temperature is what exposes sealing problems on outdoor and cold-chain products.
In-situ backlight measurement. Measure LED current and brightness at both temperature extremes, not only at room temperature. Backlight forward voltage shifts with temperature, so a driver designed at +25 °C can over- or under-drive at the limits.

Acceptance criteria must be written before the test, not after. Define allowable contrast loss, colour shift, response-time recovery and cosmetic defects, and state which of those are pass/fail versus report-only. A supplier who can show you a protocol with pre-agreed criteria is a different counterparty from one who answers temperature questions with a datasheet page.

Temperature grades and what they mean

Grade	Operating range	Panel options	Typical use
Standard	0 to +50 °C	STN, TN	Indoor consumer products
Industrial	-20 to +70 °C	STN, FSTN, VA, TFT	Factory floors, instruments
Extended	-40 to +85 °C	FSTN, VA, TFT	Outdoor, automotive, cold chain

Options referenced above are available as wide temperature LCD modules and TFT LCD displays; for application context see industrial control equipment.

Conclusion

A -40°C to +85°C rating is a promise that must be verified, not assumed. By understanding what the range covers, anticipating the failure modes at each extreme, and demanding real test data before production, you protect your product—and your reputation—in the field. The right wide temperature LCD module is the one whose specifications you have confirmed under the conditions your customers will actually experience.

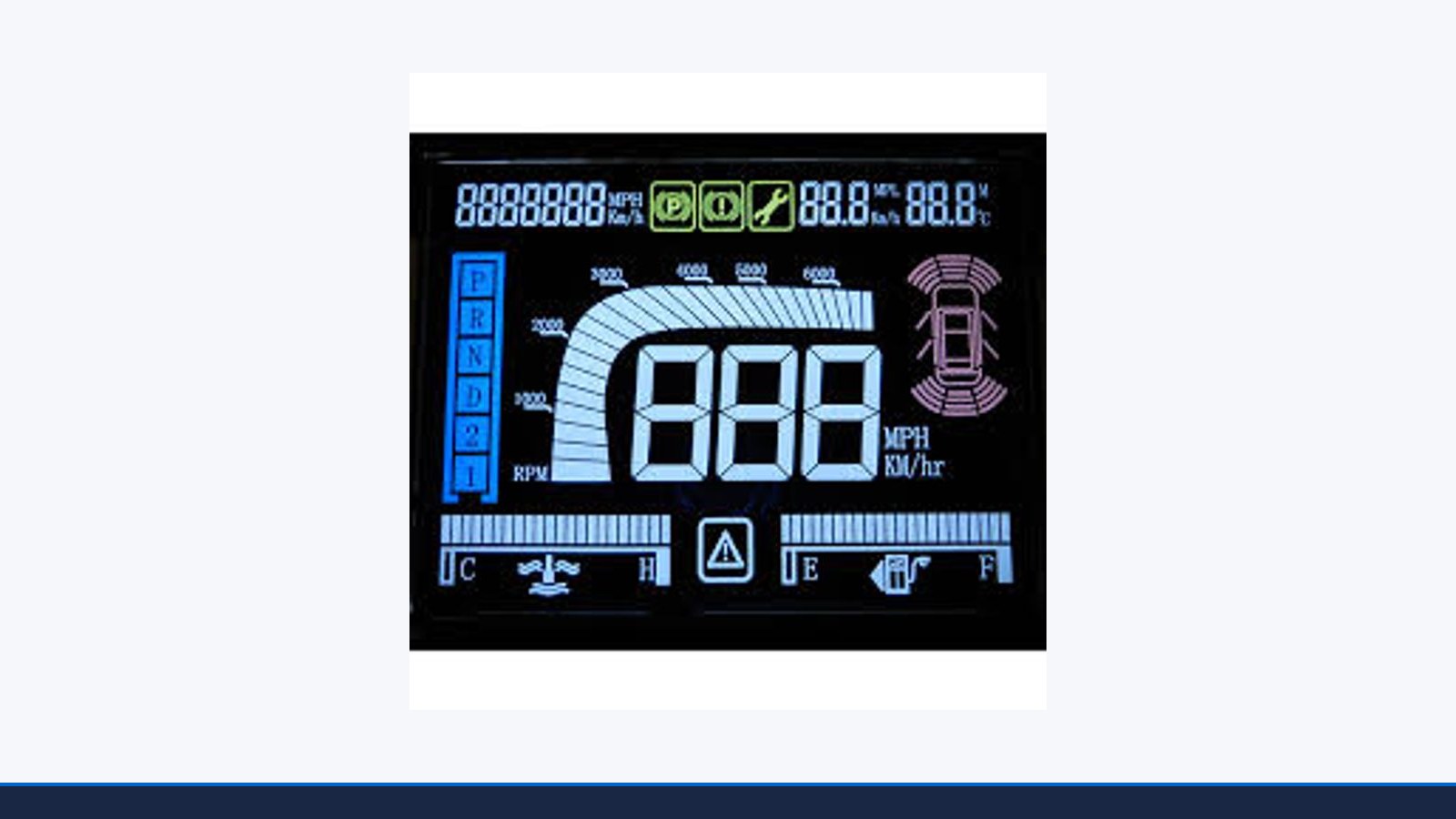

Wide Temperature LCD Modules: -40 C to +85 C Selection and Verification
